M1509

M-SERIES#Safety#Force Control#Work Management#Setup

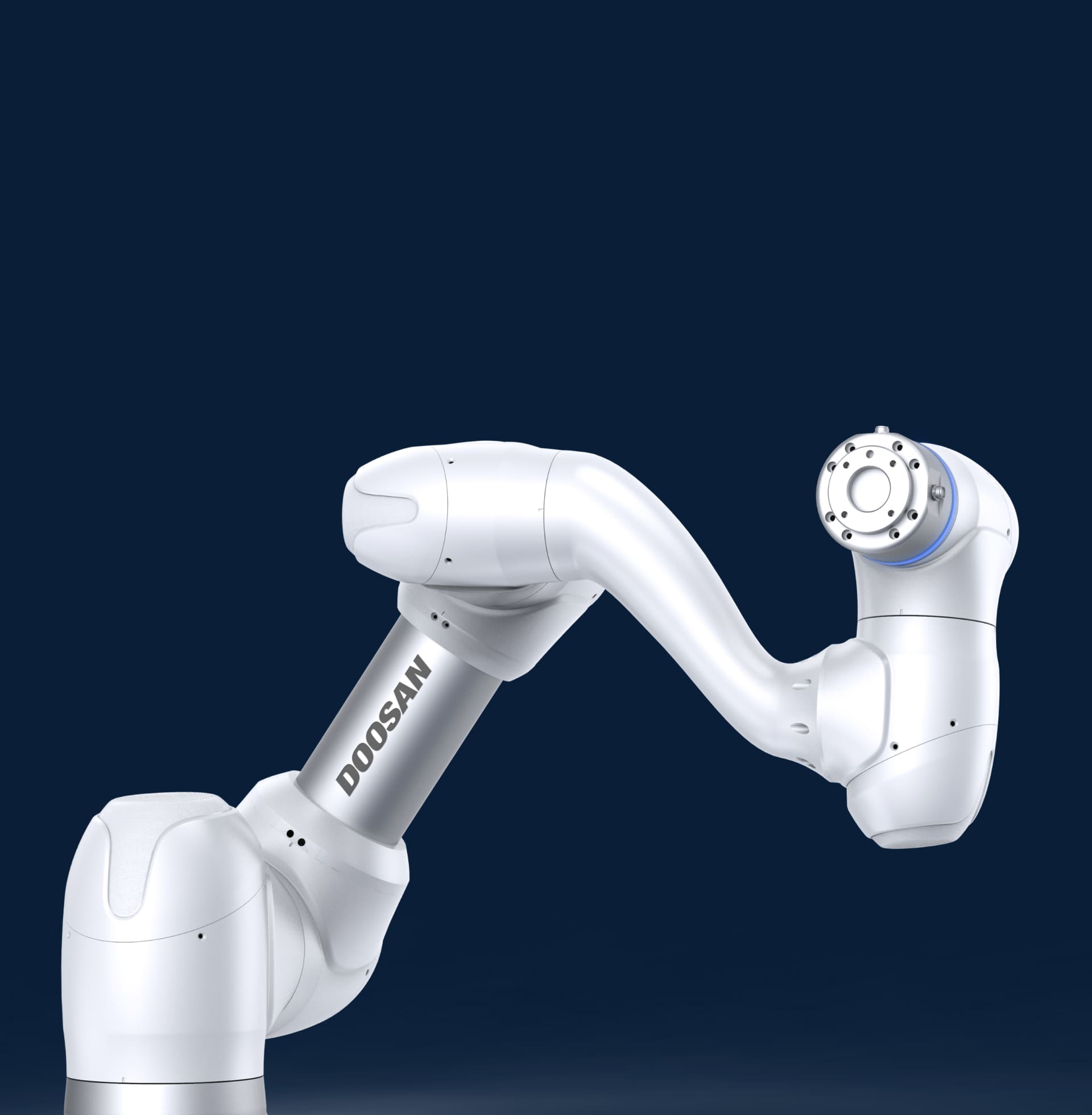

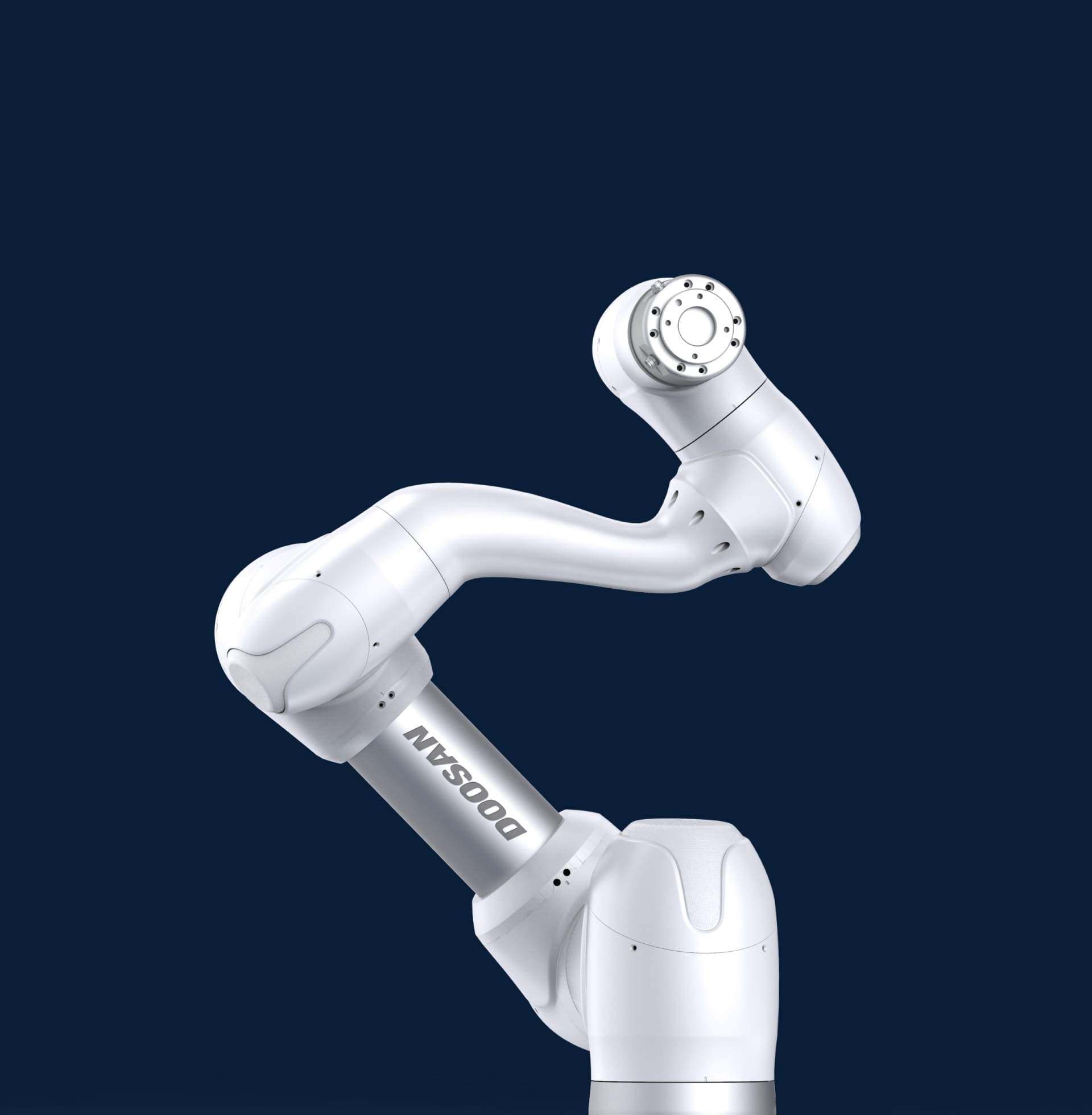

M1509

Flagship model M1509 utilizes 6 high-performance torque sensors in each of its axes, allowing sophisticated work and ensuring the industry's highest safety.

  • Payload

    15kg (33lbs)

  • Reach

    900mm (35.4inch)

  • Repeatability

    ±0.03mm

Product Inquiry Robot Series Comparison Download Catalog

Flexible Automation for Modern Manufacturing

The M-Series collaborative robots are designed to support flexible automation across a wide range of industries. They are commonly used in electronics and automotive environments where precision and adaptability are essential.

The M1509 is well-suited for applications such as machine tending and assembly, enabling efficient and consistent production workflows.

For teams moving from evaluation to deployment, turnkey automation support and robot training can help simplify adoption.

Main Application

Assembly

Performs tasks conventionally performed manually in assembly lines such as screw tightening and gear assembling

View Details

Machine Tending

Adds and removes materials in a processing machine and loads and unloads the worked item on a pallet

View Details

Welding

Welds parts with constant condition and various routes like a skilled welder

View Details

Polishing & Deburring

Performs polishing which cleans surfaces after processing and deburring which removes burr generated after processing

View Details

Gluing & Bonding

Sprays even amount of adhesive on surfaces for high-quality gluing and bonding

View Details

Plastic Injection Assist

Performs assistance work of loading and unloading items on the plastic injector mold

View Details

Press Forming

Loads and unloads panels in to and out of a press machine

View Details

Service

Performs repetitive tasks defined according to operator needs in medical, food and beverage industries

View Details

M-SERIES Major Advantages

Master+ Safety

The 6 high-performance torque sensors are capable of not only detecting fine force fluctuations but also delivering the industry's best collision sensitivity for complete safety.

Master+ Force Control

High-performance torque sensor delivers sophisticated operation incorporating high-level force control and compliance control technology​.

Master+ Work Management

With just the teach pendant, complicated and difficult work environments can be managed easily.

Master+ Setup

Smart Setup function automatically measures the robot installation angle as well as tool position and weight to allow quick installation and prompt operation.

M-SERIES Basic Components

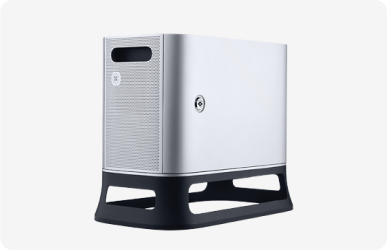

Controller

Supports all of the latest communication technologies allowing it to interface with various automation equipment and peripherals

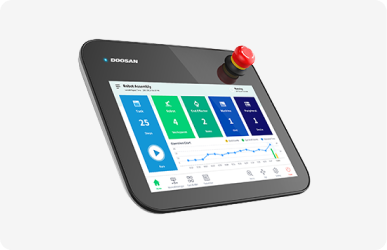

Teach Pendant

Excellent usability like that of a tablet PC and incorporation of DART Platform allow simple programming and various application configurations

M-SERIES Options

Color

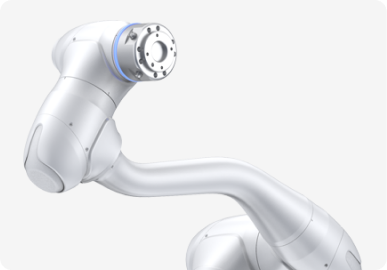

White

Basic model with simple and elegant color blending well with any work environment

Color

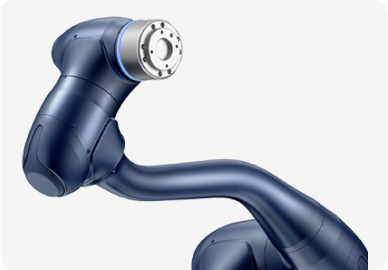

Navy

Model with reinforced anti stain capabilities for easy maintenance in work environments easily exposed to contamination

Controller

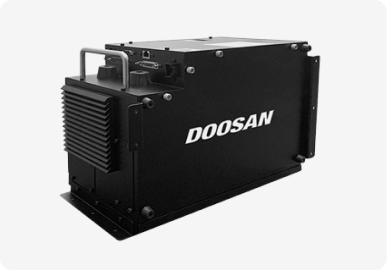

DC Controller (CS-02)

Features compact design and compatibility allowing it to be easily connected to various mobile robots, including AGV and AMR

Controller

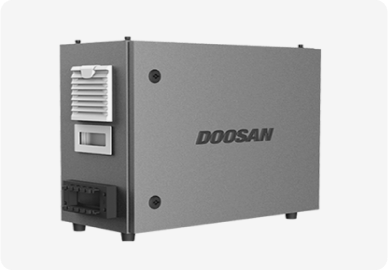

Controller (Steel)

Tough controller with stable performance guaranteed in rough industrial environments with IP54 rating

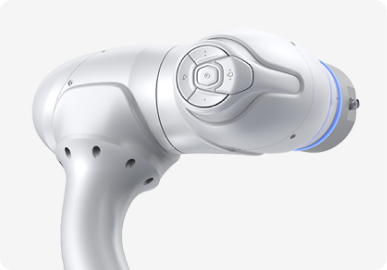

Direct Teaching Button

Cockpit

Select various teaching modes and save coordinates with simple button operations
